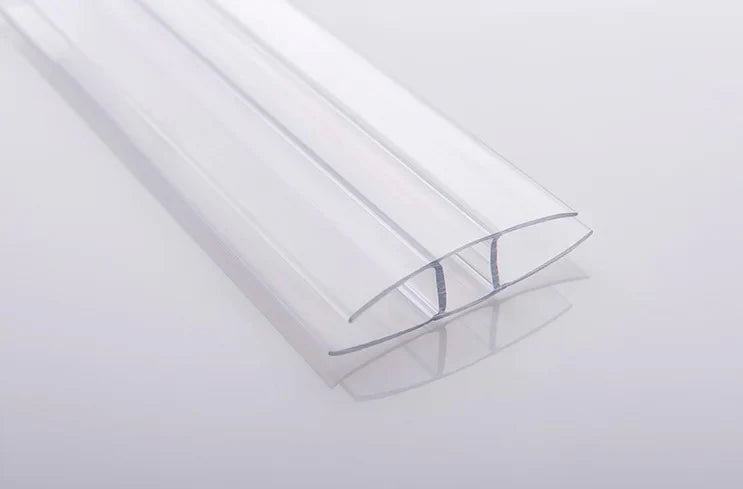

Clear Polycarbonate H Profile Connector for 8mm, 8 ft.

Clear H channel for joining two 8 mm twin wall sheets side by side, 8 ft long to match a 4x8 panel. Leave a 1.5 in gap, slide the profile in, screw every 2 ft.

Specification:

Type: H profile

Length: 96 in.

Color: Clear

The connector is designed to fit securely over the edges of the parallel sheets, ensuring a tight and weather-resistant connection.

Goes together with

• Clear 8 mm twin wall sheet, 4x8 ft, the H slides between two sheets with a 1.5 in gap.
• Roofing screws with neoprene washer, every 2 ft along the profile.
• U channel end cap plus vented tape on the bottom edge, so the flutes stay dry.

H profiles lie flat and cost less than snap, which makes them the usual choice on a greenhouse. On a pergola or patio cover a snap profile hides the screw heads. More in the installation manual.
